• Original Ortofon concorde PRO Stylus Needle
• NEW UNUSED HIGH QUALITY Original  TYPE STYLUS,  MANUFACTURED BY ORTOFON.

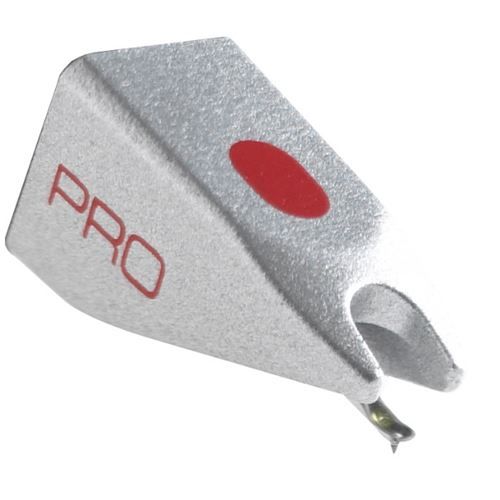

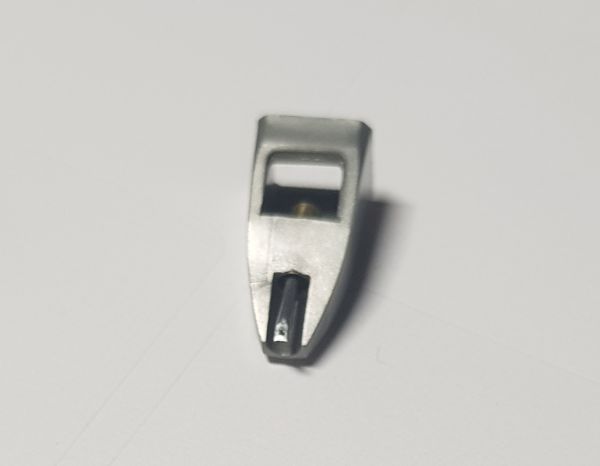

• Picture for illustration
• Important Note - Please compare the picture of the stylus before you buy it to make sure it matches the shape of the stylus you are replacing.

Output voltage at 1000Hz, 5cm/sec.  -  5 mV
Channel balance at 1kHz  -  1,5 dB
Channel separation at 1kHz  -  20 dB
Channel separation at 15 kHz -  15 dB
Frequency response  -  20-20.000 Hz +3/-2 dB
Tracking ability at 315 Hz at recommended tracking force  -  70 μm
Compliance, dynamic lateral -  7 μm/m N
Stylus type -  Spherical
Stylus tip radius -  R 18 μm

Tracking force range  -  3.0-5.0 g (30-50 mN)
Tracking force recommended -  4.0 g (40 mN)
Tracking angle -  20°
Internal impedance, DC resistance -  750 Ohm
Internal inductance -  450 mH
Recommended load resistance -  47 kOhm
Recommended load capacitance  -  200-600 pF
Concorde/OM cartridge weight -  18.5 / 5.0 g

Compatible with cartridges -  Pro
