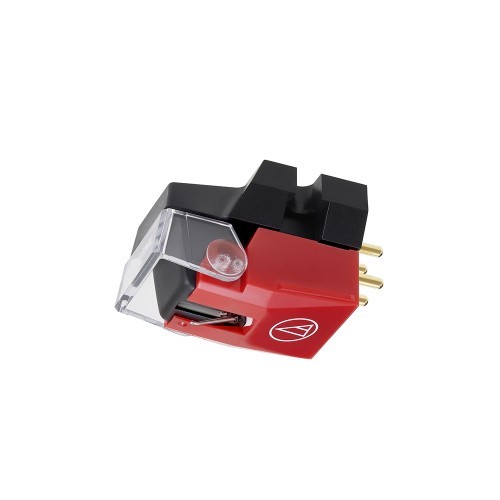

DUAL MOVING MAGNET STEREO CARTRIDGE
Standard model with a MicroLine® stylus. Distortion is low even on the inner circumference of a record because the curvature radius of the stylus tip does not alter even if the stylus becomes worn.
Recommended Load Capacitance | 100 – 200pF |
Stylus Shape | MicroLine® |
Type | VM Type |
Frequency Response | 20 - 27,000Hz |
Channel Separation | 28dB (1kHz) |
Channel Balance | 1.0dB (1kHz) |
Tracking Force | 1.8 – 2.2g (2.0g standard) |
Coil Impedance | 2,700Ω (1kHz) |
Vertical Tracking Angle | 23˚ |
Recommended Load Impedance | 47,000Ω |
Static Compliance | 40 x 10-6 cm/dyne |
Dynamic Compliance | 10 x 10-6 cm/dyne (100Hz) |
Output Voltage | 4.0mV (1kHz, 5cm/sec.) |
Stylus Size | 0.12 x 2.2 mil |
Cantilever | Aluminium Tapered Pipe |
Stylus Construction | Nude Square Shank |
Mount | 1/2” centres |
Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |
Weight | 6.4g |
Replacement Stylus | VMN40ML |
Accessories | Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1 |
| Código de producto | VM540ML |
| Condition | New |
| Peso | 0.03kg |
DUAL MOVING MAGNET STEREO CARTRIDGE
Standard model with a MicroLine® stylus. Distortion is low even on the inner circumference of a record because the curvature radius of the stylus tip does not alter even if the stylus becomes worn.
Recommended Load Capacitance | 100 – 200pF |
Stylus Shape | MicroLine® |
Type | VM Type |
Frequency Response | 20 - 27,000Hz |
Channel Separation | 28dB (1kHz) |
Channel Balance | 1.0dB (1kHz) |
Tracking Force | 1.8 – 2.2g (2.0g standard) |
Coil Impedance | 2,700Ω (1kHz) |
Vertical Tracking Angle | 23˚ |
Recommended Load Impedance | 47,000Ω |
Static Compliance | 40 x 10-6 cm/dyne |
Dynamic Compliance | 10 x 10-6 cm/dyne (100Hz) |
Output Voltage | 4.0mV (1kHz, 5cm/sec.) |
Stylus Size | 0.12 x 2.2 mil |
Cantilever | Aluminium Tapered Pipe |
Stylus Construction | Nude Square Shank |
Mount | 1/2” centres |
Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |
Weight | 6.4g |
Replacement Stylus | VMN40ML |
Accessories | Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1 |
| Código de producto | VM540ML |
| Condition | New |
| Peso | 0.03kg |
