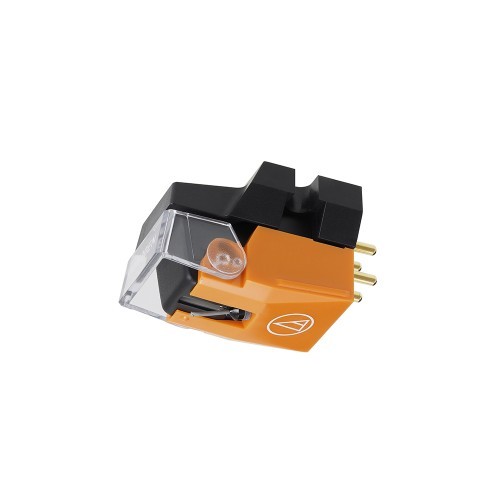

DUAL MOVING MAGNET STEREO CARTRIDGE
High-end elliptical stylus model equipped with a light-weight nude elliptical stylus to reduce the execution mass of the vibration system. This enables fuller frequency reproduction.
Recommended Load Capacitance | 100 – 200pF |
Stylus Shape | Nude Elliptical |
Type | VM Type |
Frequency Response | 20 - 25,000Hz |
Channel Separation | 27dB (1kHz) |
Channel Balance | 1.5dB (1kHz) |
Tracking Force | 1.8 – 2.2g (2.0g standard) |
Coil Impedance | 2,700Ω (1kHz) |
Vertical Tracking Angle | 23˚ |
Recommended Load Impedance | 47,000Ω |
Static Compliance | 35 x 10-6 cm/dyne |
Dynamic Compliance | 8 x 10-6 cm/dyne (100Hz) |
Output Voltage | 4.0mV (1kHz, 5cm/sec.) |
Stylus Size | 0.3 x 0.7 mil |
Cantilever | Aluminium Pipe |
Stylus Construction | Nude Square Shank |
Mount | 1/2” centres |
Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |
Weight | 6.4g |
Replacement Stylus | VMN40ML |
Accessories | Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1 |
| Product Code | VM530EN |
| Condition | New |
| Weight | 0.03kg |
