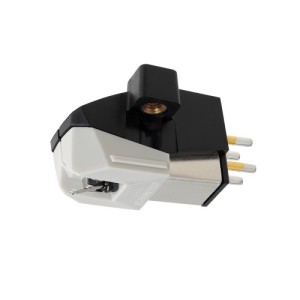

Original Audio Technica ™ AT-VM95ML Cartridge with Diamond Elliptical Stylus
New Unused Generic Replacement from Authorised Audio Technica UK Reseller
FEATURES::
VM95 series Microlinear stereo cartridge
The AT-VM95ML, features a Nude Microlinear diamond, not only the Microlinear stylus will permit to double the duration of your stylus. The performance of a line contact stylus, will minimize the “inner groove distortion” as well as providing extended frequency response and maximize resolution in the medium and high frequencies of the audio program material.
material. Aluminium cantilever
3.5mV output voltage
Compatible body with all VM95 Series stylus assemblies
20 to 25,000Hz frequency response
SPECIFICATIONS~:
Model
AT-VM95ML
Type
VM Stereo Dual Magnet
Mounting
1/2” centres
Frequency Response
20 - 25,000 Hz
Channel Separation
23 dB (1 kHz)
Output Channel Balance
1.5 dB (1 kHz)
Output Voltage
3.5 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle
23°
Vertical Tracking Force Range
1.8 - 2.2g (standard 2.0 g)
Stylus Shape
Microlinear
Stylus Size
2.2 x 0.12 mil
Stylus Construction
Nude Square Shank
Cantilever
Aluminium Pipe
Coil Impedance
3.3 kΩ (1 kHz)
Coil Inductance
550 mH (1 kHz)
DC Resistance
485 Ω
Static Compliance
20 x 10 – 6 cm / dyne
Dynamic Compliance
10 x 10 – 6 cm / dyne (100 Hz)
Wire Used for Coil
T.P. Copper
Recommended Load Impedance
47,000 Ω
Recommended Load Capacitance
100-200 pF
Cartridge Weight
6.1g
Dimensions
17.2 x 18.9 x 28.3 ( H x W x D mm)
Replacement Stylus
AT-VMN95ML
Accessories Included
Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver
