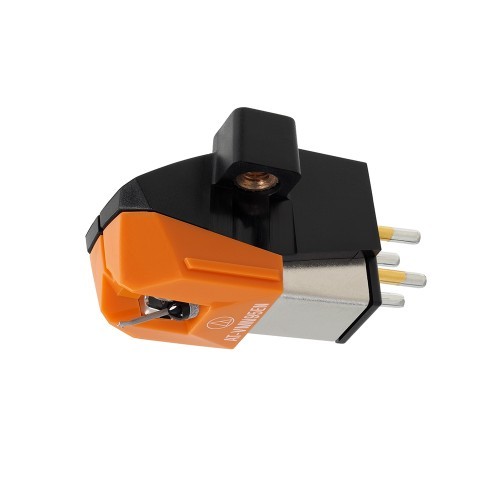

DUAL MOVING MAGNET STEREO CARTRIDGE
Fitted with a Elliptical NUDE stylus. .
| Model | AT-VM95EN |
| Type | VM Stereo Dual Magnet |
| Mounting | 1/2” centres |
| Frequency Response | 20 - 23,000 Hz |
| Channel Separation | 22 dB (1 kHz) |
| Output Channel Balance | 2.0 dB (1 kHz) |
| Output Voltage | 3.5 mV (@ 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force Range | 1.8 - 2.2g (standard 2.0 g) |
| Stylus Shape | Elliptical |
| Stylus Size | 0.3 x 0.7 mil |
| Stylus Construction | Nude Round Shank |
| Cantilever | Aluminium Pipe |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| Coil Inductance | 550 mH (1 kHz) |
| DC Resistance | 485 Ω |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 7 x 10 – 6 cm / dyne (100 Hz) |
| Wire Used for Coil | T.P. Copper |
| Recommended Load Impedance | 47,000 Ω |
| Recommended Load Capacitance | 100-200 pF |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 ( H x W x D mm) |
| Replacement Stylus | AT-VMN95EN |
| Accessories Included | Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver |
| Product Code | VM95EN |
| Condition | New |
| Weight | 0.03kg |
