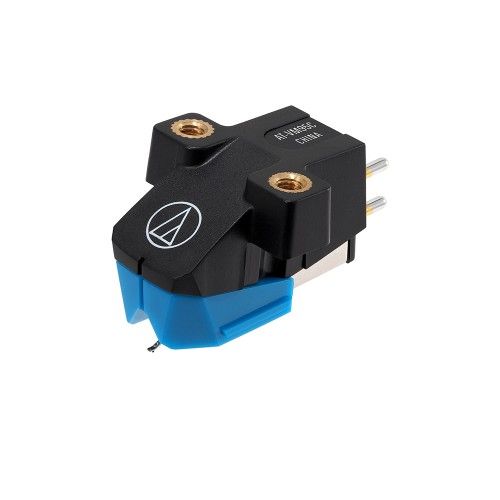

DUAL MOVING MAGNET STEREO CARTRIDGE
Standard model with a Conical ( spherical) stylus. .
The AT-VM95C, the new Audio-Technica entry model Conical cartridge will replace the legendary AT90 Series models such as AT91, AT91R and CN5625AL
Also the AT-VM95C is a “budget” cartridge featuring a conical stylus, the compatibility in the range will allow to upgrade with any of the 4 other LP styli of the Series such as Elliptical, Elliptical Nude, Microlinear and Shibata.
Model | AT-VM95C |
Type | VM Stereo Dual Magnet |
Mounting | 1/2” centres |
Frequency Response | 20 - 20,000 Hz |
Channel Separation | 18 dB (1 kHz) |
Output Channel Balance | 2.5 dB (1 kHz) |
Output Voltage | 4.0 mV (@ 1 kHz, 5 cm/sec) |
Vertical Tracking Angle | 23° |
Vertical Tracking Force Range | 1.8 - 2.2g (standard 2.0 g) |
Stylus Shape | Conical |
Stylus Size | 0.6mil |
Stylus Construction | Bonded Round Shank |
Cantilever | Aluminium Pipe |
Coil Impedance | 3.3 kΩ (1 kHz) |
Coil Inductance | 550 mH (1 kHz) |
DC Resistance | 485 Ω |
Static Compliance | 17 x 10 – 6 cm / dyne |
Dynamic Compliance | 6.5 x 10 – 6 cm / dyne (100 Hz) |
Wire Used for Coil | T.P. Copper |
Recommended Load Impedance | 47,000 Ω |
Recommended Load Capacitance | 100-200 pF |
Cartridge Weight | 6.1g |
Dimensions | 17.2 x 18.9 x 28.3 ( H x W x D mm) |
Replacement Stylus | AT-VMN95C |
Accessories Included | Two 11 mm installation screws; |
| Product Code | VM95C |
| Condition | New |
| Weight | 0.03kg |
