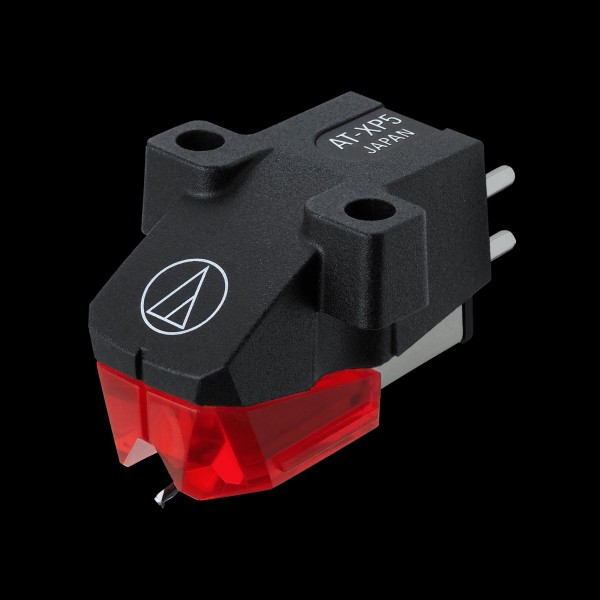

The  Audio Technica AT-XP series cartridges provide a high quality sound for vinyl DJ’s. Offering all of the features of a DJ cartridge, but with a Hi-fi sound, the XP series are perfect for the stage and club DJ who prioritises sound quality.

• Audiophile DJ cartridge equipped with an elliptical stylus
• VM dual magnet construction
• Durable robust design for high-quality specialist DJ playback
• Signal output level and output impedance characteristics suited for professional DJ applications
• Carbon fibre-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
• Compatible with the replacement styli ATN-XP5 and ATN-XP7 for an upgrade

Specifications:

Model: AT-XP5

Type: Dual Magnet

Mounting: ½"

Frequency Response: 20 – 18,000Hz

Channel Separation: 20dB at 1kHz

Output Channel Balance: 2.0dB

Output Voltage: 5.5mV (mV at 1kHz,5cm/sec)

Vertical Tracking Angle: 20^o

Vertical Tracking Force Range: 2.0 – 4.0g (standard 3.0g)

stylus Shape: Elliptical

stylus Size: 0.3 x 0.7 mil

stylus Construction: Bonded Round Shank

Cantilever: Carbon Reinforced ABS

Coil Impedance: 67 KΩ (1 kHz)

Coil Inductance: 550mH (1kHz)

Static Compliance: 20 x 10^-6cm/dyne

Dynamic Compliance: 6.0 x 10^-6cm/dyne

Recommended Load Impedance: 47 KΩ

Recommended Load Capacitance: 100 – 200pF

Weight: 6.2g

Dimensions: H17.2 x W17.8 x D28.3mm

Replacement stylus: ATN-XP3

Accessories Included:

2 x 11mm installation screws

2 x 8mm installation screws

2 x washers, 2 x nuts

1 x Non-magnetic screwdriver
